Trailed

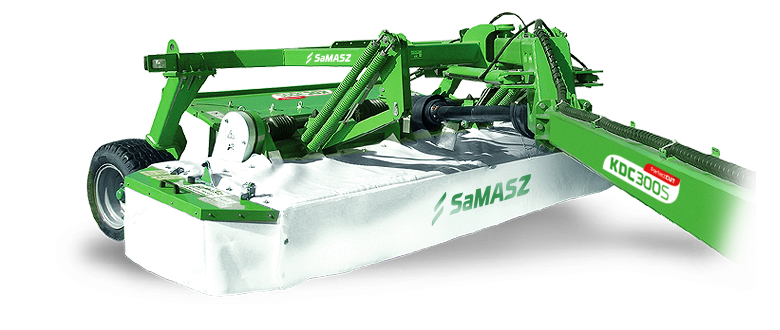

KDC Trailed Mower Series
340, 300S, 340S, 300ST, 340ST

About

Our design of trailed mowers with central drawbar allows working on both sides of the tractor. It helps to save time when taking turns. KDC mowers can be additionally equipped with tine or roller conditioner and belt conveyor for swath transportation.

Clean fodder and turf protection
  • Stepless adjustment of cutting height
  • Use of topping skids or double topping skids possible
  • Perfect ground following also on uneven and steep terrain
  • Lower ground pressure thanks to wide road wheels
  • Eliminates tedding thanks to application of conditioners

Technical Specifications - KDC340

KDC340
Conditioner type
Working width [m/ft] 3,40 / 11’2”
Transport width [m/ft] 3,40 / 11’2”
Swath width [m/ft] 1,70 – 2,10 / 5’6” – 6’9”
Necessary hydraulic couplers 1 x single acting 1 x double acting
Working capacity [ha/h/ac/h] ~ 4,00 / ~ 10,00
Number of discs [pcs.] 8
Number of knives [pcs.] 16
Tires (with inner tubes) [pcs.] 340 / 55 / 16
RPM 540 / 1000
3-point hitch cat. II
Power demand [HP] from 90
Weight [kg/lbs] 1755 / 3870
PTO shaft tractor – mower: with friction clutch, built-in: 1. no clutch, 2. with overrunning clutch, 3. with overload clutch, 4. wide-angle u-joint

Technical Specifications - KDC300S, 340S

KDC 300S* KDC 340S*
Conditioner type Flail Conditioner Flail Conditioner
Working width [m/ft] 3,00 / 9’10” 3,40 / 11’2”
Transport width [m/ft] 3,00 / 9’10” 3,40 / 11’2”
Swath width [m/ft] 1,00 – 1,60 / 3’3″-5’3″ 1,30 – 2,00 / 4’4” – 6’7”
Necessary hydraulic couplers 1 x single acting 1 x double acting 1 x single acting 1 x double acting
Working capacity [ha/h/ac/h] ~ 3,50 / ~ 8,70 ~ 4,00 / ~ 10,00
Number of discs [pcs.] 7 8
Number of knives [pcs.] 14 16
Tires (with inner tubes) [pcs.] 400 / 50 / 15 400 / 50 / 15
RPM 540 / 1000 540 / 1000
3-point hitch cat. II II
Power demand [HP] from 90 from 110
Weight [kg/lbs] 1910 2095
PTO shaft tractor – mower: with friction clutch, built-in: 1. no clutch, 2. with overrunning clutch, 3. with overload clutch, 4. wide-angle u-joint tractor – mower: with friction clutch, built-in: 1. no clutch, 2. with overrunning clutch, 3. with overload clutch, 4. wide-angle u-joint

Technical Specifications - KDC300ST, 340ST

KDC 300ST KDC 340ST
Conditioner type Flail Conditioner, Plus transport conveyor belt Flail Conditioner, Plus transport conveyor belt
Working width [m/ft] 3,00 / 9’10” 3,40 / 11’2”
Transport width [m/ft] 3,00 / 9’10” 3,40 / 11’2”
Swath width [m/ft] 1,00 – 1,60 / 3’3” – 5’3” 1,30 – 2,00 / 4’4” – 6’7”
Necessary hydraulic couplers 2 x single acting 2 x double acting 2 x single acting 2 x double acting
Working capacity [ha/h/ac/h] ~ 3,50 /~ 8,70 ~ 4,00 / ~ 10,00
Number of discs [pcs.] 7 8
Number of knives [pcs.] 14 16
Tires (with inner tubes) [pcs.] 400 / 50 / 15 400 / 50 / 15
RPM 540 / 1000 540 / 1000
3-point hitch cat. II II
Power demand [HP] from 90 from 110
Weight [kg/lbs] 2350 2495
PTO shaft tractor – mower: with friction clutch, built-in: 1. no clutch, 2. with overrunning clutch, 3. with overload clutch, 4. wide-angle u-joint tractor – mower: with friction clutch, built-in: 1. no clutch, 2. with overrunning clutch, 3. with overload clutch, 4. wide-angle u-joint
